Top-notch Injection Molding Service Provider

Injection molding is the most cost-effective way to make a plastic part at scale. The injection molding process involves injecting molten plastic into a mold tool, and then ejecting the solidified part. This process quickly repeats hundreds or thousands of times, amortizing the cost of the mold tool and driving down the cost of each unit to a few dollars or less. Since the injection molding process uses the same mold tool for each part, it offers consistent quality across every part. Injection molding also has the highest variety of materials, colors, cosmetics, polishes, and surface textures when compared to CNC machining or even 3D printing.

Prototechnoworld3d's custom plastic mold service is a service providing on-demand prototype and production molding. We are the best plastic molding company in the country, dealing with exclusive materials in the injection molding process. We take a customer-first approach to mold the parts the way you need them—without design compromises—at the right price point. We offer expert consultation on each injection mold quote and project managers on every order to move your parts from design to production. Our team has experience in every industry, especially EV, electronics, IoT & industry. First-time buyers receive special discounts on their first mold with Prototechnoworld3d.

Unlock the Potential of Injection Molding with Prototechnoworld3d

Partner with Prototechnoworld3d to unleash the full potential of injection molding. Whether you need precise prototypes, functional parts, or end-use components, we possess the expertise and resources to fulfill your requirements.

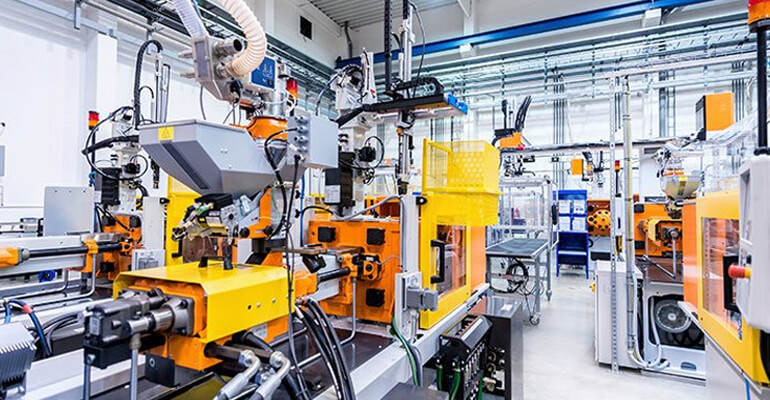

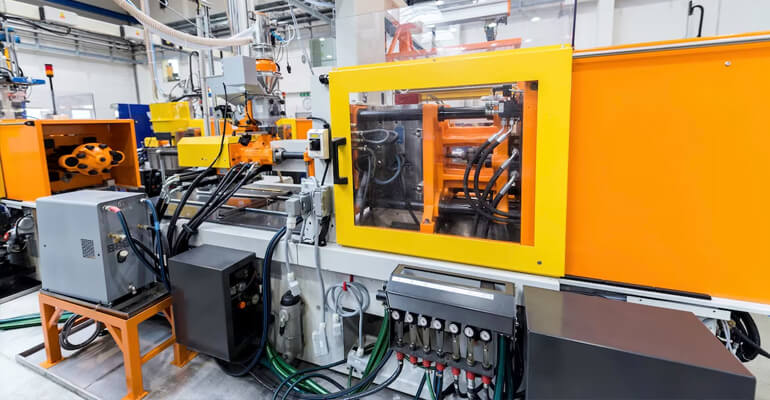

INFRASTRUCTURE

Our state-of-the-art vacuum casting infrastructure ensures the precise and efficient production of high-quality parts for diverse applications.

Reasons to Choose Injection Molding

Rigid Plastic Materials:

• ABS (acrylonitrile butadiene styrene): High-strength general-purpose engineering plastic, used for many commercial products.
• ASA (acrylonitrile styrene acrylate): A material very similar to ABS with higher resistance to fading and better suited for outdoor use.
• CA (cellulose acetate): Typically used in eyeglasses and film, CA is a flexible clear material that can be used in food contact.
• HDPE (high-density polyethylene): Excellent strength-to-weight ratio and chemical resistance. It is often used for fuel tanks, connector insulators, and food containers. HDPE is also used in outdoor equipment like playgrounds.
• LCP (liquid crystal polymer): LCP has mechanics even at elevated temperatures as well as low dielectric constants. This material provides exceptional features for micromolding and thin walled components. LCP is popular for electrical connectors and interconnects as well as medical devices.
• LDPE (low-density polyethylene): A flexible and tough material with lower density versus HDPE. LDPE does not react to acids, bases, or alcohols. Useful for trays, snap lids, and general-purpose containers.
• PA 6 (polyamide 6, nylon 6): Offers increased mechanical strength, rigidity, good stability under heat, and/or chemical resistance.PA 6/6 (polyamide 6/6, nylon 6/6): Offers increased mechanical strength, rigidity, good stability under heat, and/or chemical resistance.
• PARA (polyarylamide): Often combined with infills such as glass or mineral fibers, PARA creates rigid parts with low creep and a slower rate of water absorption than nylon (PA). PARA is excellent for structural components in handheld and medical electronics.
• PBT (polybutylene terephthalate, Valox): A common electronic insulator with a polyester base. Highly used in automotive as a longer-wear alternative to nylon.
• PBT-PET (polybutylene terephthalate-polyethylene terephthalate): A compounded blend of PBT and PET.
• PC (polycarbonate): A clear or colored, lightweight, glass-like plastic that is heavily used across multiple industries. PC is impact resistant, holds great feature detail, and can be used for safety equipment, lenses, electronic devices, and much more.
• PC-ABS (polycarbonate-acrylonitrile butadiene styrene): The best of both PC and ABS. Higher-strength engineering thermoplastic with slightly more flexibility than standard polycarbonate.
• PC-PBT (polycarbonate-polybutylene terephthalate, Xenoy): A tough and rigid material resistant to lubricants, solvents, and cleaning agents. Very common in electronic enclosures.
• PC-PET (polycarbonate-polyethylene terephthalate): A blend of PC and PET provides tough and chemically resistant results and can be used as an alternate to PC-ABS. It endures harsh solvents and cleaners, making it excellent for sports equipment and healthcare applications.
• PCT (polycyclohexylenedimethylene terephthalate): A thermoplastic polyester that typically outperforms PET due to lower moisture absorption and better environmental stability. PCT is often used for connectors and switches.
• PE (polyethylene): One of the most common plastics used in the world, PE has high ductility, abrasion resistance, and chemical resistance. PE is often described by its molecular weight, such as UHMW PE (ultra-high molecular weight), LDPE (low density), or HDPE (high density). PE is used in packaging, tubing, films, bottles, and more.
• PEEK (polyether ether ketone): Offering excellent tensile strength that surpasses most plastics, PEEK is often used as a lightweight substitute for metal parts in high-temperature, high-stress applications. PEEK resists chemicals, wear, and moisture.
• PEI (polyetherimide, Ultem): Known best for its extremely high heat and flame resistance, PEI is used for many medical applications and is more affordable than PEEK.
• PE-PP (polyethylene-polypropylene): A resin blend of the polyolefin’s polypropylene and polyethylene.

• PE-PS (polyethylene-polystyrene): A resin blend of the polyethylene and polystyrene.
• PES (polyethersulfone): A rigid, transparent plastic that is chemically inert, biocompatible, and sterilizable. PES is suitable for food-contact devices such as coffee machine components as well as aerospace and automotive where chemical exposure is high.
• PET (polyethylene terephthalate, Rynite): Also abbreviated PETE, this is a clear, strong, and lightweight PE resin heavily used in food packaging, soda bottles, jars, and more. The material is food-safe. PET is recyclable with a resin code of 1.PLA (polylactic acid): A biodegradable and renewable plastic. PLA has a relatively low glass transition temperature and is common in short-use applications.
• PMMA (polymethyl methacrylate, acrylic): A clear glass-like plastic. Good wear and tear properties. Great for outdoor use.
• POM (acetal polyoxymethylene, Delrin): Good moisture resistance, high wear-resistance, and low friction.
• PP (polypropylene): Polypropylene has excellent electrical properties and little or no moisture absorption. It carries light loads for a long period in varying temperatures. It can be molded into parts requiring chemical or corrosion resistance.
• PPA (polyphthalamide): A subset of nylons (polyamide) that typically exhibit a higher melting point and lower moisture absorption. PPA is typically used in automotive and industrial applications because it can withstand harsh chemicals. PPA is good for fuel and fluid manifolds and headlight housings.
• PPS (polyphenylene sulfide, Ryton): A high-performance thermoplastic with extreme resistance to solvents.PS (polystyrene): A clear, hard, and brittle material widely used for food packaging, clamshell containers, and even disposable cutlery.
• PS-PPE (polystyrene-polyphenyl ethers, Noryl): Exhibiting high heat and flame resistance, PPE-PS has high stiffness and tensile strength even at elevated temperatures.
• PSU (polysulfone, Udel): A rigid, stiff, and transparent plastic which is a higher-performance alternative to polycarbonate.
• PVC (polyvinyl chloride (Shore D)): A rigid, general-use plastic that is common in plumbing, non-food packaging, and trimming.
• PVDF (polyvinylidene fluoride, Kynar): A chemically inert, high-temperature material. Due to its low friction, PVDF is used in plumbing parts, bearings, chemical handling, electrical wire insulation, and tubing.
• SAN (styrene acrylonitrile): A polystyrene that is heat resistant and transparent. Due to its relationship with polystyrene, SAN is low cost and has enhanced clarity and shine. SAN is common in household goods, door handles, and kitchenware.TPO (thermoplastic polyolefin): A flexible plastic with good chemical resistance but lower temperature resistance compared to PP.
• TPU (thermoplastic polyurethane (Shore D)): A tough, highly abrasion-resistant resin that bridges the gap between rubbers and plastics. TPUs can be formulated to be rigid or elastomeric. TPU exhibits a high flex before break and is ideal for wheels and door panels.

Our Commitment to Excellence in Injection Molding
